QB-C QB-D Car Line
| QB-C QB-D |
| 125℃,150℃ 輻照交聯阻燃聚烯烴絕緣汽車線（環保） |
|
產品說明： ●額定溫度：125℃/150℃ ●額定電壓：300V/600V ●參考標準：QC/T 730-2005 ●導體使用單支或絞合0.5-50mm2鍍錫或裸銅 ●XLPE絕緣，符合ROHS環保標準 ●絕緣厚度均勻、易裁線、易剝皮 ●用于汽車內部接線 |
PRODUCT DESCRIPTION ●Rated temperature：125℃/150℃ ●Rated voltage：300V/600V ●Reference standard：JB 6213 ●Solid or stranded ,tinned or bare copper conductor0.5-50mm2 ●XLPE insulation ,comply with ROHS environmental standard ●Uniform insulation thickness to ensure easy stripping and cutting ●For used The inside of the car connection |
 |
|
印字 MARKING QB-C ( )mm2 125℃ 300/600V --CHANG ZHOU PAINUO-- LF QB-D ( )mm2 125℃ 300/600V --CHANG ZHOU PAINUO-- LF |

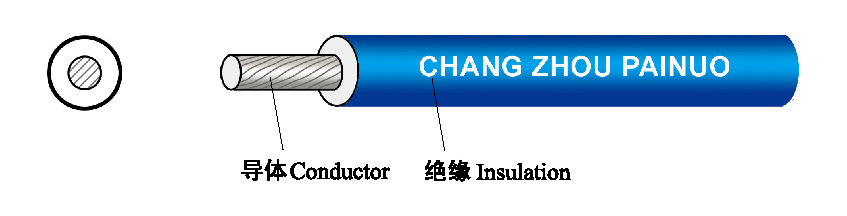

| 產品結構 CABLE CONSTRUCT |
|
導體 CONDUCTOR |
絕緣 INSULATION |
MAX導體電阻MAX.COND. RESISTANCE （Ω/Km,20℃） |
25℃時空氣敷設載流量25℃CAIRLAYING CARRYING CURRENT (A) |
標準長度STANDARD PUT-UP (M/COIL) |
|||
|
規格 AWG |
構造 CONSTRUCTION |
外徑 DIA. |
厚度 THICKNESS |
標稱外徑 O.D. |
|||
| (No./mm) | (mm) | （mm） | (mm) | ||||
| 0.5 | 16/0.2 | 0.95 | 0.22 | 1.7±0.1 | 40.1 | 15 | 500 |
| 0.75 | 24/0.2 | 1.25 | 0.24 | 1.9±0.1 | 26.7 | 17 | |
| 0.85 | 19/0.24 | 1.3 | 2.0±0.1 | 23.4 | 18 | ||
| 1.0 | 32/0.2 | 1.35 | 2.1±0.1 | 20.0 | 19 | ||
| 1.5 | 30/0.25 | 1.65 | 2.4±0.1 | 13.7 | 24 | ||
| 2.5 | 49/0.25 | 2.1 | 0.28 | 3.0±0.1 | 8.21 | 33 | 300 |
| 4.0 | 56/0.3 | 2.7 | 0.32 | 3.8±0.1 | 5.09 | 45 | 200 |
| 6.0 | 84/0.3 | 3.3 | 4.3±0.1 | 3.39 | 58 | ||
| 8.0 | 64/0.4 | 4 | 0.40 | 5.2±0.1 | 2.67 | 69 | |
| 10 | 80/0.4 | 4.7 | 0.48 | 6.0±0.2 | 1.95 | 80 | |
| 16 | 126/0.4 | 5.8 | 0.52 | 7.9±0.2 | 1.24 | 107 | 100 |
| 25 | 196/0.4 | 7.4 | 9.4±0.2 | 0.795 | 138 | ||
| 35 | 276/0.4 | 8.6 | 0.80 | 11.0±0.2 | 0.565 | 171 | |
| 50 | 396/0.4 | 10.4 | 0.96 | 13.5±0.3 | 0.393 | 210 | |
| 注：?jiǎn)胃鶎?dǎo)體結構見附表，系列外的結構和規格可按供需雙方商定。 |
